RE 3032 / RE 3053 TTO

RE 3032 / RE 3053 TTO Printer

Download Brochure

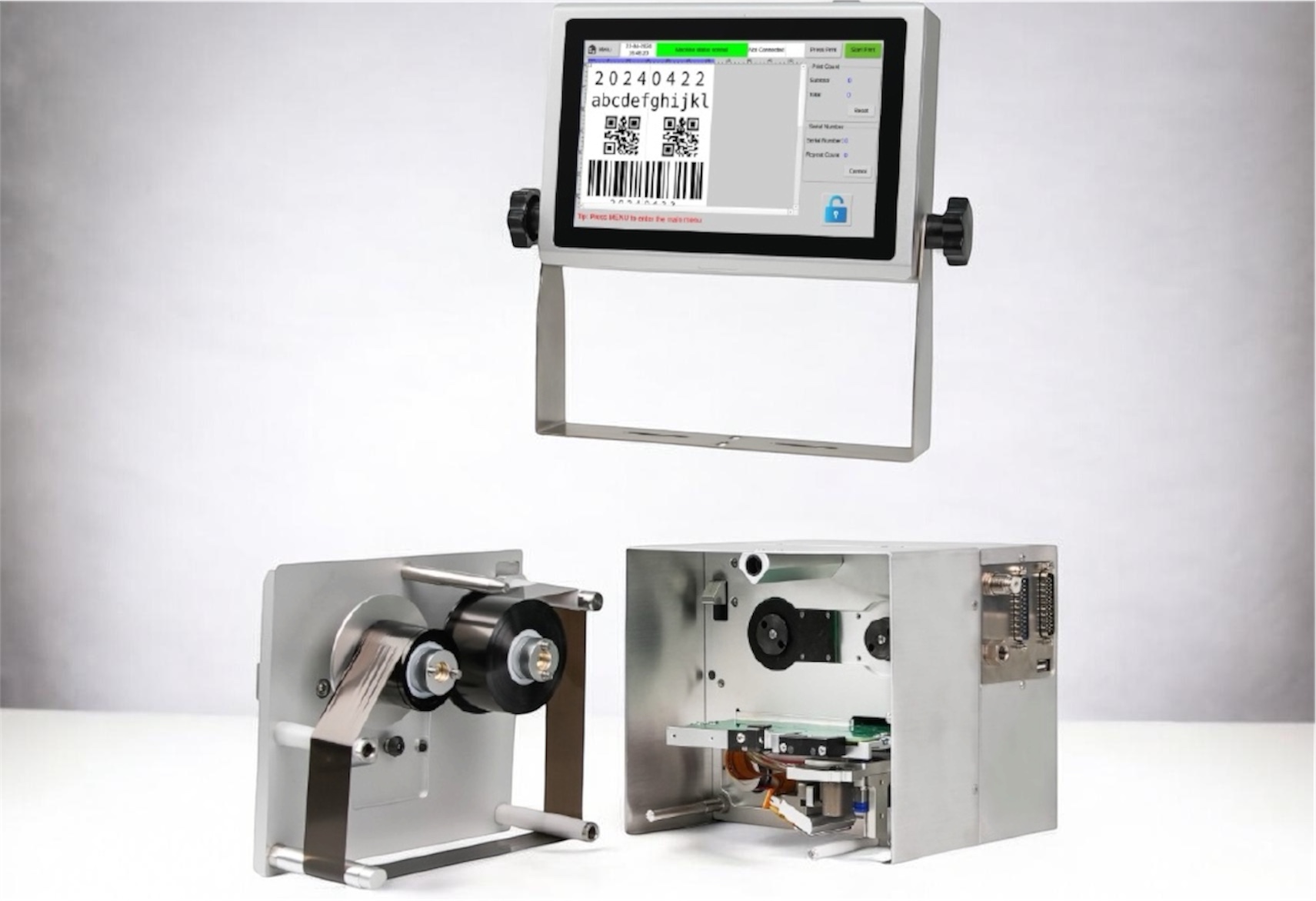

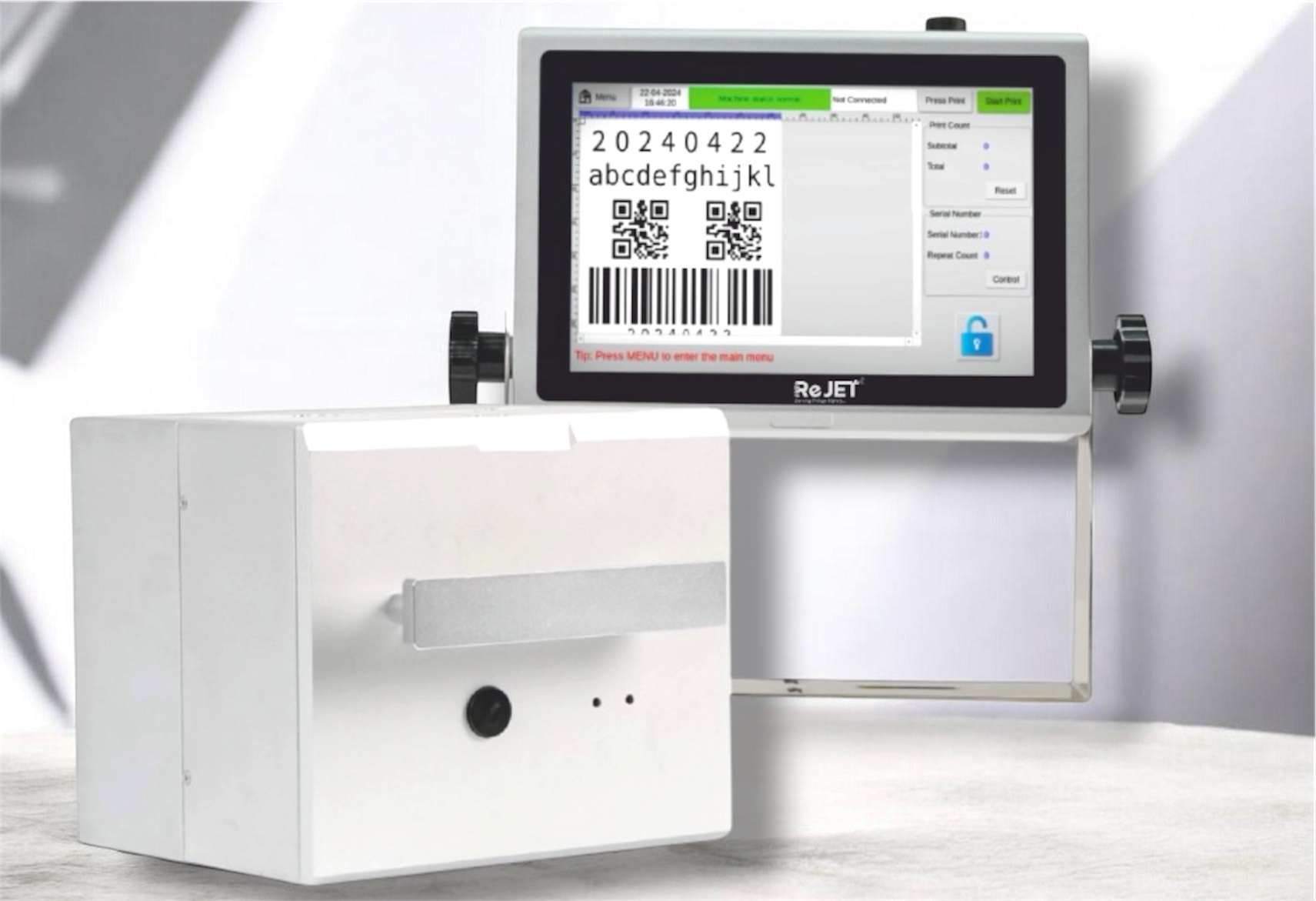

ReJet TTO RE3032 / RE3053
ReJet TTO RE3032 / RE3053

Specifications

Operating Mode : Intermittent Printing & Continuous Printing
Print Resolution : 300 DPI
Power Supply : AC 110 - 220V, 50/60 Hz
Air Supply : 1.5 - 4.0 Bar / 22.5 - 60 Psi
Communication : USB, RS232, TCP/IP network interface (docking with ERP/databases)
Working Environment : Temperature 0 - 45° C, Humidity 30 - 70% Rh
Weight : Coding Machine: 7.5 kg, Controller: 2.4 kg
Coding Dimensions : 224.8 (W) x 216.8 (H) x 182.5 (D) mm
Controller Dimensions : 258 (W) x 155.4 (H) x 192 (D) mm (10.1-inch screen)

Product Details

Print Mode : Thermal Transfer Overprint (TTO)
Printhead Width : 32 mm / 53 mm
Print Area (32mm) : 35x75 mm (for 32mm model)
Print Area (53mm) : 53x70 mm (for 53mm model)
Print Speed : 200 - 350 mm/s (up to 800 mm/s ultimate efficiency)
Print Gap : ± 0.1 mm
Ribbon Width : 24 mm, 33 mm, 35 mm, 55 mm
Ribbon Length : Up to 1200 m capacity
Print Content : Characters, GS1 Data Matrix, Dynamic QR Code, Barcode, graphics, serial number, date, shift, counter, variable database.

Key Benefits

  • Intermittent high-speed printing up to 800 mm/s
  • Ultra-high resolution 300 DPI for sharp QR codes, barcodes, and GS1 Data Matrix
  • 10.1-inch color touch screen controller with real-time print preview
  • Rugged body made from aerospace-grade aluminum and CNC molding
  • Supports more than 40 languages and multiple information group printing

Ribbon Management

  • 1200m large ribbon capacity to greatly reduce line downtime and changeover frequency
  • Simple ribbon box design for fast, effortless ribbon replacement
  • Intelligent automatic identification and ribbon tension adjustment
  • Multiple ribbon saving modes to optimize usage and reduce operational cost

Advanced Hardware

  • High-performance self-developed PCBA motherboards for industrial environments
  • Equipped with high-performance CPU and high-speed computing FPGA
  • Anti-interference solid-state electronic components and SMT assembly
  • Remote centralized control system and seamless database integration (ERP, drug codes, etc.)

Printhead Intelligence

  • Integrated printhead usage statistics and intelligent replacement reminders
  • Precise heating control to prolong printhead lifetime and maintain print consistency
  • Smooth printhead gap adjustment mechanism to match various packaging films and substrates
